Electrical Measuring Tools

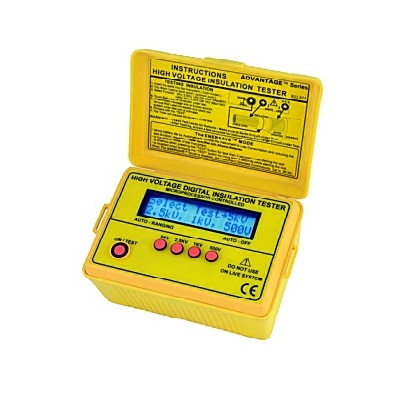

Resistance meter 5000V/250GOM SEW 2803IN
2803IN / SEW - Taiwan
- Test voltage (DCV): 0.5kV/1kV/2.5kV/5kV
- Measurement range: 0-25GΩ / 0-50GΩ / 0-125GΩ / 0-250GΩ
- Accuracy: 0-50GΩ : ±3% rdg; 50-250GΩ : ±5% rdg
- Dimensions: 170(L) × 120(W) × 95(D)mm
- Weight: 930g
- Power: 1.5V(AA) × 8
- Standard: EN 61010-1 ; EN 61326-1
0 ₫ 0.0 VND

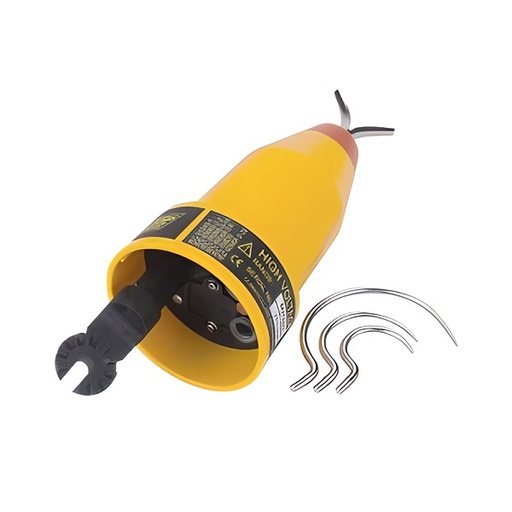

Direct electrical test head SEW 220HVD - 6.6/132kV
220HVD / SEW - Taiwan
- LED and audio indication when voltage is detected
- Voltage range: 6.6/132kV ; Threshold voltage: 2kV-3kV
- Frequency: 50-60Hz
- Dimensions: 300x100x100 mm
- Weight: 550g
- Standard: EN 61243-1
- Suitable for indoor and outdoor use (in all weather conditions). Compatible with all link bars. Automatically turns off after 3 minutes if no voltage is detected. Waterproof design, protection class IP65
0 ₫ 0.0 VND

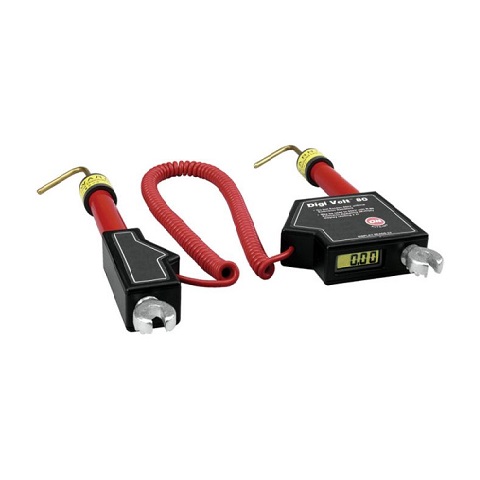

HD Electric DVM-80UVM Digital Voltmeter and Phasing Tester (50V-40kV)
DVM-80UVM / HD Electric - USA
- Operating Voltage: 50V - 40kV (Up to 80kV with additional resistor)
- Operating Temperature: –25°C to +55°C
- Operating Frequency: 50-1000Hz AC/DC
- Backlit LCD display, easy to read in low light or dark conditions
- Fiberglass Rod Diameter: 1”(2.54cm)
- Connection Cord Length: 12'(3.6m) when extended; 3.5'(1.7m) when retracted
- Dimensions: Length (without probe): 15”(38cm)
- Weight (without probe): 1.02kg
0 ₫ 0.0 VND
PD800IW wireless phase isotope tester
PD800IW is a wireless phase isotope tester designed for convenient phase angle testing, easy to use because it does not require connecting cables between probes. The device includes a probe and a reference probe that are connected via wifi and will operate reliably at distances of up to 100 feet (30 meters). The device can use voltage levels from 120V to 800kV
Specifications
- Type: PD800W.
- Place of manufacture: Bierer Associates Inc (USA).
- Use indoors and outdoors.
- Operating temperature: -100C to +500C.
- 9V rechargeable battery with removable charger 220V/50Hz.
- LED screen displays phase difference angle.
0 ₫ 0.0 VND

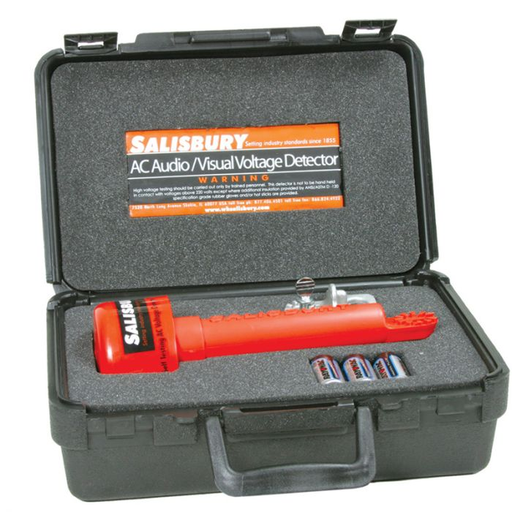

SALISBURY 4356 indirect electrical tester
- Indirect type electrical test head, does not contact electrically charged objects
- 8 test voltage ranges: Off/ 240V/ 4.2kV, 15kV, 25kV, 35kV, 69kV, 115kV, 230kV
- Signaling with LED lights and sound
- Uses 3 1.5V batteries
- Compatible with most link bars. Can be used indoors and outdoors
- Maximum detection range can be up to 230kV
0 ₫ 0.0 VND

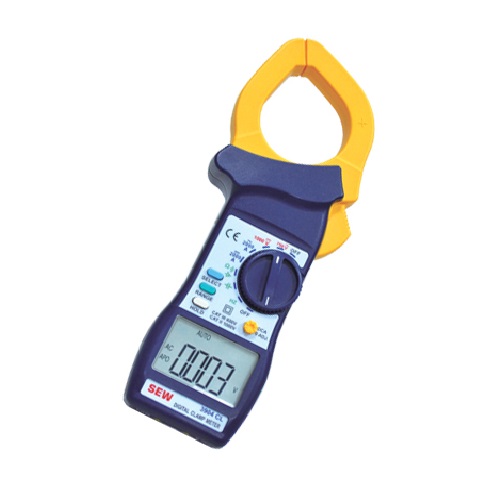

SEW 3904CL clamp meter
3904CL / SEW - Taiwan
+ ACA: 400.0/2000A /±(1.5%rdg+4dgt)
+ ACV: 400.0mV,4,000/40.00/400.0/750V /±(1.0%rdg+3dgt)
+ DCA: 400.0/2000A /±(1.5%rdg+4dgt)
+ DCV: 00.0mV/4,000/40.00/400.0/1000V /±(0.75%rdg+2dgt)
+ Ω continuity test: 400.0Ω/4.000/40.00/400.0kΩ/4.000MΩ / ±(1.5%rdg+3dgt) 40.00MΩ ±(2.0%rdg+4dgt)
+ C: 2.000/20.00/200.0nF/20.00/200.0uF/2.000mF ±(3.0%rdg+5dgt)
+ Hz: 4.000/40.00/400.0kHz/4.000/40.00MHz/ ±(1.0%rdg+2dgt)
- Plier ring: 55mm Max.
- Dimensions: 265(L) × 100(W) × 42(D)mm
- Weight: 510g
- Power source: 9V(6F22) × 1
0 ₫ 0.0 VND

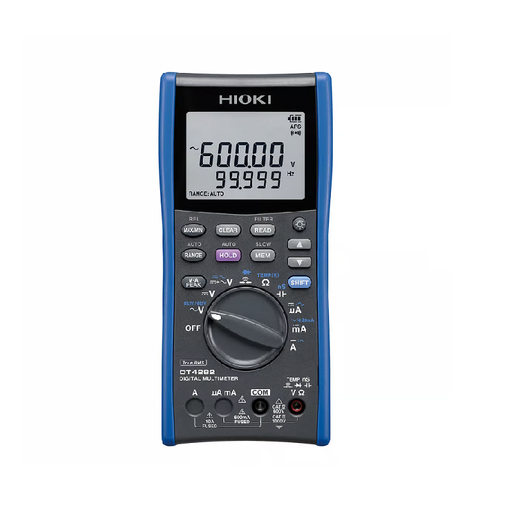

Hioki DT4282 Multifunctional Electrical Measurement Device
DT4282 / HIOKI - Japan
- DC voltage measurement feature: 60 mV to 1000 V, 6 scales
- AC voltage measurement feature: 60 mV to 1000 V, 6 scales
- DC / AC voltage measurement mode: 6V to 1000 V, 4 scales
- DC current measurement feature: 600 μA to 10 A, 6 scales
- AC current measurement feature: 600 μA to 10 A, 6 scales
- Resistance measurement feature: 60 Ω to 600 MΩ, 8 scales
- Capacitance measurement feature: 1 nF to 100 mF, 9 ranges
- Check continuity: 20/50/100/500 Ω
- Diode test:  Open terminal voltage: ≤4.5 V, Test current: ≤1.2 mA
0 ₫ 0.0 VND

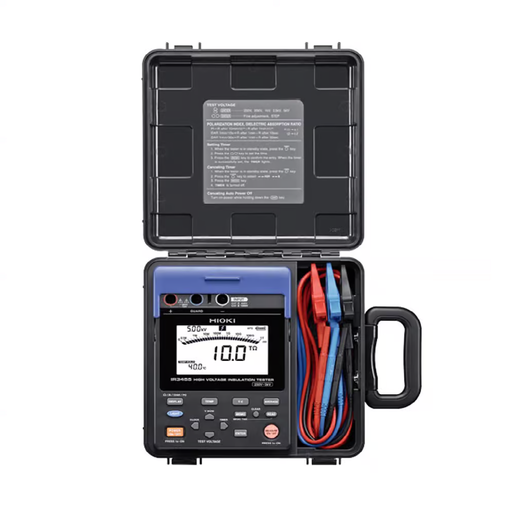

Hioki IR3455 insulation resistance measuring device
IR3455 / Hioki - Japan
-  Test voltage: 250 V to 5.00 kV DC
- Voltage measurement:
0.00 MΩ to 500 GΩ (250 V)
0.00 MΩ to 1.00 TΩ (500 V)
0.00 MΩ to 2.00 TΩ (1 kV)
0.00 MΩ to 5.00 TΩ (2.5 kV)
0.00 MΩ to 10.0 TΩ (5 kV)
- Current measurement: 1 mA
- Resistance range: 10 MΩ to 10 TΩ, 7 scales
- Leakage measurement: 1.00 nA to 1.20 mA, 6 scales
- Voltage measurement: ±50 V to ±1.00 kV DC, 50 V to 750 V AC
0 ₫ 0.0 VND

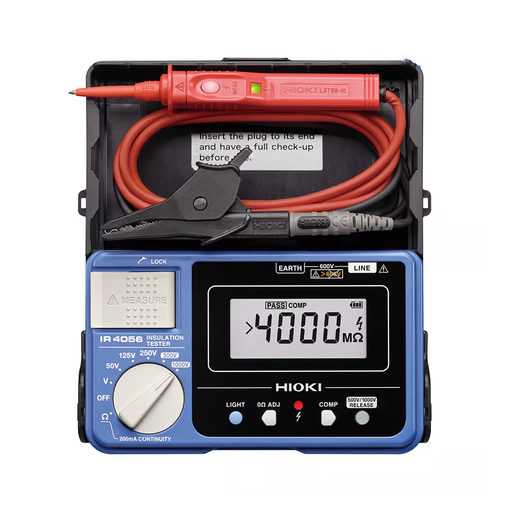

Hioki IR4056-21 insulation resistance measuring device
IR4056-21 / Hioki - Japan
- Output measurement voltage: 50/125/250/500/1000 VDC
- Maximum resistance measurement value: 100/250/500/2000/4000 MΩ
- Lower limit resistance value: 0.05/0.125/0.25/0.5/1 MΩ
- Overload protection: AC 600V (10s) for scales < 1000 VDC and AC 1200V (10s) for scales 1000 VDC
- DC voltage measurement feature: 4.2V to 600V, 4 scales
- AC 50/60 Hz voltage measurement feature: 420V / 600V, 2 scales
- Ground wire continuity test feature: 10 Ω to 1000 Ω, 3 scales
0 ₫ 0.0 VND

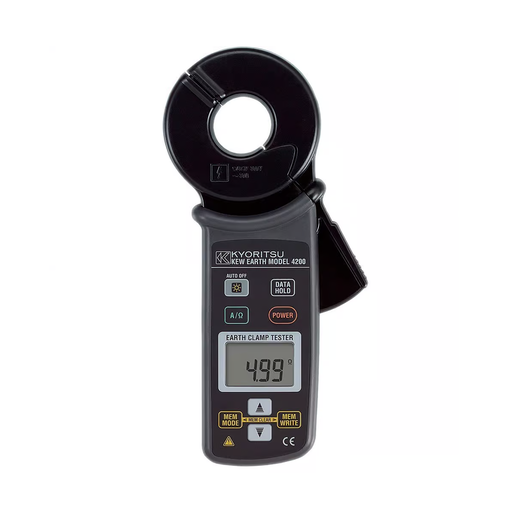

Kyoritsu 4200 Clamp meter
4200 / Kyoritsu - Japan
- Earth resistance test:
+ Measuring range: 20Ω/200Ω/1200Ω
+ Resolution: 0.01Ω/0.1Ω/1Ω/10Ω
- AC current test:
+ Measuring range: 100mA/1A/10A/30A
+ Display range: 0.1mA/1mA/0.01A/0.1A
- Clamp diameter: Approx. Ø32mm
- Power supply: LR6/R6 (AA)(1.5V) x 4
- Dimensions: 246(L)×120(W)×54(D)mm
- Weight (without battery): 780gc
0 ₫ 0.0 VND

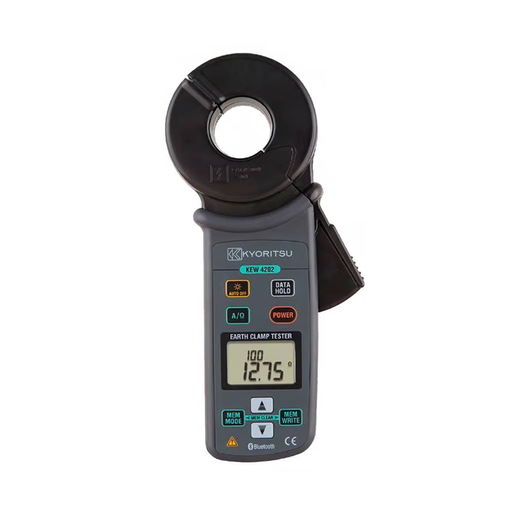

Kyoritsu 4202 Clamp meter
4202 / Kyoritsu - Japan
- Earth resistance test: Measuring range: 0~20Ω/ 0~200Ω/ 0~1500Ω
- AC current test: Measuring range: 100/1000mA/10A/30A
- Clamp diameter: Approx. Ø32mm
- Power supply: LR6/R6 (AA)(1.5V) x 4
- Dimensions: 246(L)×120(W)×54(D)mm
- Weight (without battery): 780g
0 ₫ 0.0 VND

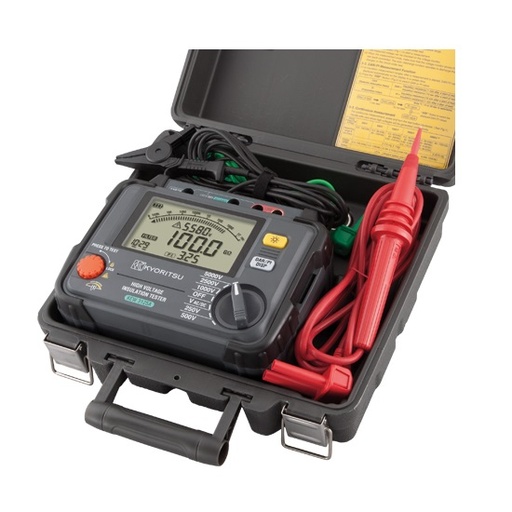

Máy đo điện trở cách điện KYORITSU 3125A
3125A / Kyoritsu - Japan
- AC/DC voltage measurement: 30 ~ 600V
- Short circuit current: 1.5mA
- Test voltage: 250V/500V/1000V/2500V/5000V
- Resistance measurement range: 100.0MΩ/1000MΩ/2.00GΩ/100.0GΩ/1000GΩ
- Accuracy: ±5%rdg |±3dgt, ±20%rdg (100GΩ or more)
- Power supply: DC12V: LR14/R14 × 8pcs
- Accessories: 7165A (Line probe); 7264A (Earth probe); 7265A (Guard probe); 8019 (Hook type prod) ; 9181 (Carrying case) ; LR14×8pcs (Battery) ; User manual.
0 ₫ 0.0 VND

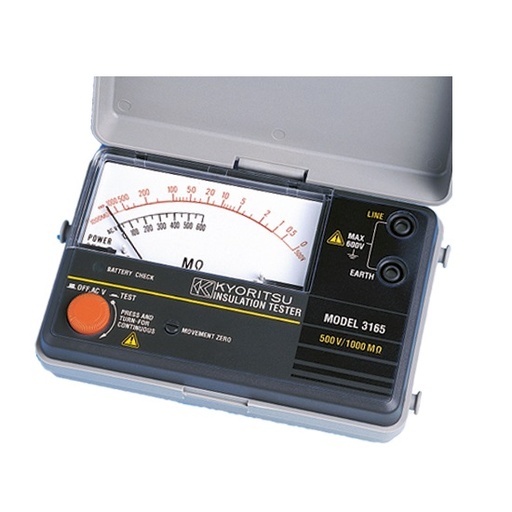

Kyoritsu 3165 Insulation Resistance Meter
3165/ Kyoritsu
- DC Test Voltage : 500V
- Max measurement value : 1000MΩ
- First measurement range : 1~500MΩ
- Error : |±5% rdg
- Second measurement range : 1/1000MΩ
- Error : ±10% rdg
- AC voltage : 600V
- Accuracy : |±3%
- Power supply : R6P (AA) (1.5V) × 4
- Dimensions : 90(L) × 137(W) × 40(D)mm
- Weight : 330g approx.
0 ₫ 0.0 VND

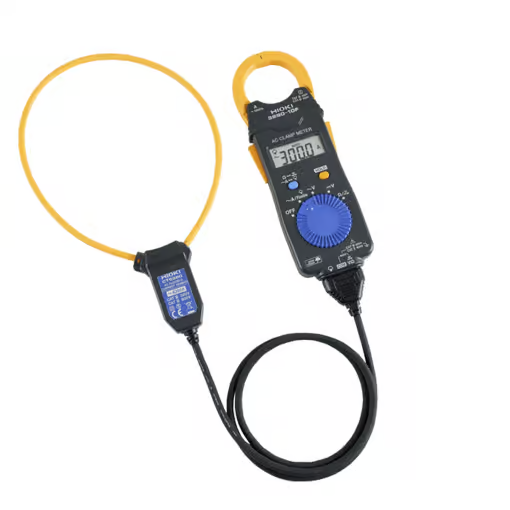

Hioki 3280-70F AC Clamp Meter
3280-70F / HIOKI - Japan
- Resistance measurement: 420.0 Ω to 42.00 MΩ, 6 ranges (±2% rdg)
- AC current measurement (50-60Hz): 42.00 to 4200A
- DC voltage measurement: 420.0 mV to 600 V, 5 ranges (±1.0% rdg)
- AC voltage measurement (50 to 500 Hz): 4.000 V to 600 V, 4 ranges (±1.8% rdg)
- Continuity test: Buzzer at threshold ≤(50Ω ± 40Ω)
- Wire clamp diameter: φ 33 mm
- Dimensions: (WxHxD) 57x175x16 mm
- LCD display: Max. 4199 digits
- Weight: 100g
0 ₫ 0.0 VND

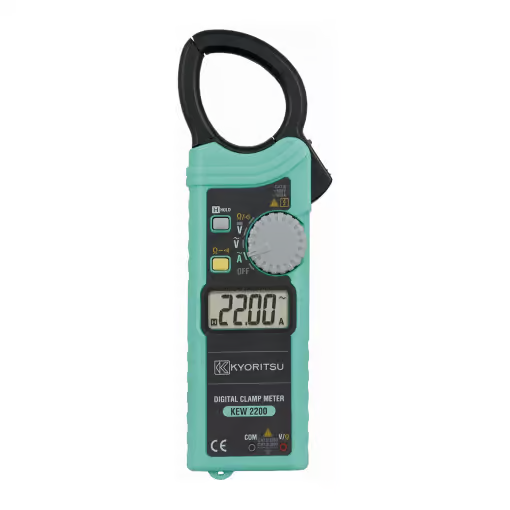

Kyoritsu 2200 Clamp Meter
2200 / Kyoritsu
- Clamp diameter: Ø33mm
- AC current: 40.00/400.0/1000A
- AC voltage: 4.000/40.00/400.0/600V
- DC voltage: 400.0mV/4.000/40.00/400.0/600V
- Resistance: 400.0Ω/4.000/40.00/400.0kΩ/4.000/40.00MΩ
- Power source: R03/LR03 (AAA) (1.5V) × 2
- Dimensions: 190(L) × 68(W) × 20(D)mm
- Weight: ~120g
- Accessories: 7107A test probe, Box 9160, R03 (AAA) × 2, Instruction Manual
- Standard: IEC 61010-1 CAT III 600V / CAT II 1000V ; IEC 61010-2-031 IEC 61010-2-032
0 ₫ 0.0 VND
