U phase test head (6k~81.5kV) 2.45m SEW 290HD
290HD / SEW - Taiwan
- Test voltage range: 6kV~81.5kV
- Operating voltage: 2.7kV (Compared to ground)
- Display: Red light, Sound 50dB at 3m
- Club length: 1370±50mm (retracted) and 2450±50mm (extended)
- Frequency: 50/60Hz
- Withstand voltage: 100kV/300mm for 1 minute
- Insulation resistance: 2000MΩ min at 1kV
- Detection current: 100uA or less than 100uA
- Operating temperature: 0°C~40°C
- Battery source: 2 button-cells LR44 (1.5V)
- Weight: 590g (including battery)
- Standard: IEC / EN 61243-1
0 ₫ 0.0 VND
U phase test head (6k~36.5kV) 1.52m SEW 230HD
230HD / SEW - Taiwan
- Test voltage range: 6kV ~ 36.5kV
- Operating voltage: 2.7kV (Compared to GND)
- Display: Red light, Sound 50dB at 3m
- Club length: 893±50mm (retracted) and 1520±50mm (extended)
- Frequency: 50/60Hz
- Withstand voltage: 100kV/300mm for 1 minute
- Insulation resistance: 2000MΩ min at 1kV
- Detection current: 100uA or less than 100uA
- Operating temperature: 0°C~40°C
- Battery source: 2 button-cells LR44 (1.5V)
- Weight: 485g (including battery)
- Standard: IEC / EN 61243-1
0 ₫ 0.0 VND

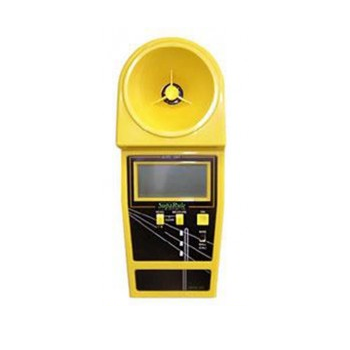

Line deflection meter 600E
CHM600E / Suparule -Ireland
- Cable range: 23m/75ft; Measure 6 wires
- Operating temperature: -10°C - 40°C
- Size: 205x100x70 mn
- Weight: 0.5 kg
- Handheld cable height measuring device. To measure cable height distance, deflection and overhead clearance.
- Simple operation with 3 buttons ensures fast and effective measurements
- Auto power off function helps save battery when inactive after three minutes
- Measurement applications: Telephone lines, Distribution lines, Transmission lines, Cable TV (installers and contractors), Street lights, Sag (lowest point above ground), Dark separation six cable multi.
0 ₫ 0.0 VND
