HYDRAULIC TOOLS

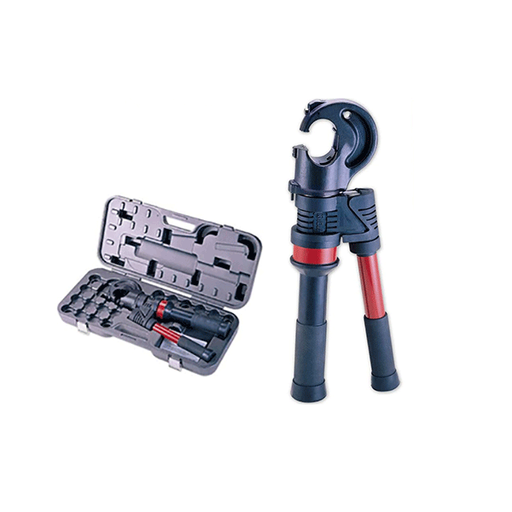

12-ton beltless hydraulic press pliers D26 Kudos HYCP-2612
HYCP-2612 / Kudos
- Pressure: 700 bar
- Required oil: 118.4 cc
- Pressing force: 12.7 tons / 125 kN
- Mouth width: 26 mm
- Length: 490 mm
- Weight: 6.7 kg
- Wire diameter up to 400mm²
- Can use 12 ton belts Alcoa, Burndy, T&B, Klauke, Cembreand Blackburn.
- Belt sold separately (CU sizes 16/25/35/50/70/95/120/150/185/240/300/400).
180° rotating head for convenient operation. The body and handle are completely insulated. Pressure relief valve for overload protection. Automatic low/high pressure switching with fast/slow operating motion. Two-stage hydraulic system reduces the number of hand pumps required.
0 ₫ 0.0 VND

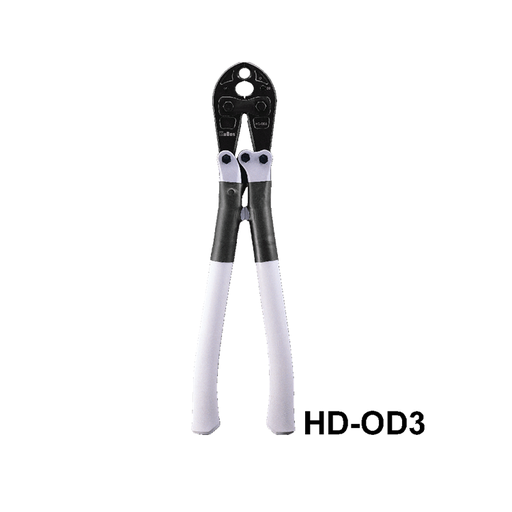

Kudos HD-OD3 compression pliers
HD-OD3 / Kudos
- Length: 652 mm
- Weight: 3.20 kg
- Pressing force: 4.5 tons
- Pressing ability: Copper conductor, aluminum, ACSR, copper solder, aluminum solder, steel, 6201, 5005, compressed and compact conductor.
- Fiberglass handle and lightweight high-strength aluminum alloy casting.
- Use W type mold
0 ₫ 0.0 VND

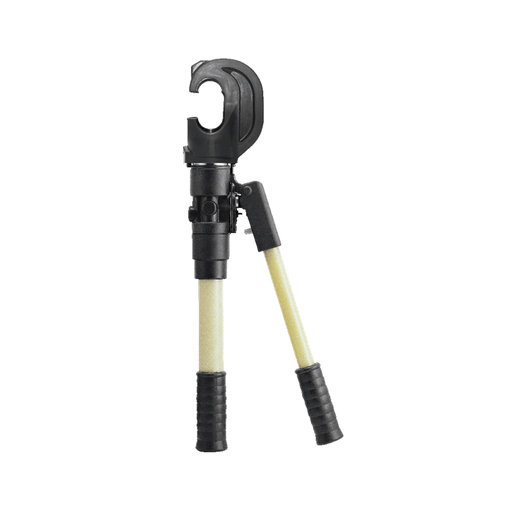

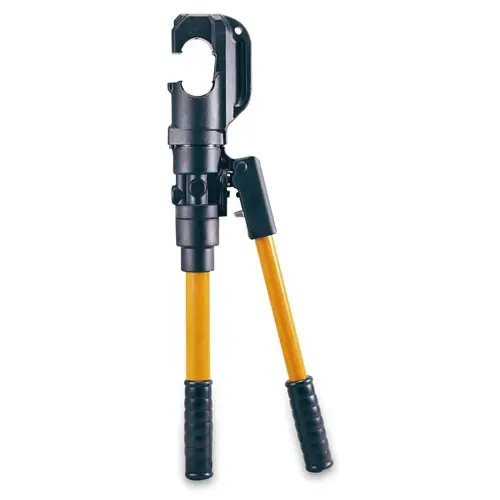

Kudos HYCP-4013 beltless pliers
HYCP-4013 / Kudos
- Length: 590 (L) mm
- Weight: 7.3 kg
- Max. Pressure: 700 bar
- Oil amount: 147 cc
- Max capacity: 12.7 tons / 125 kN
- Plier mouth width: 40 mm
- Diameter of pressing wire: up to 400mm²
- Can use 12-ton belts of Alcoa, Burndy, T&B, Klauke, Cembreand Blackburn types.
- Mold sold separately includes hexagonal belt sizes CU 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300, 400.
- 180° rotating head for convenient operation. Fiberglass handle is durable and lightweight. Externally mounted relief valve, Pressure relief valve for overload protection. Automatic low/high pressure switching with fast/slow operating motion. Two-stage hydraulic system reduces the number of hand pumps required.
0 ₫ 0.0 VND

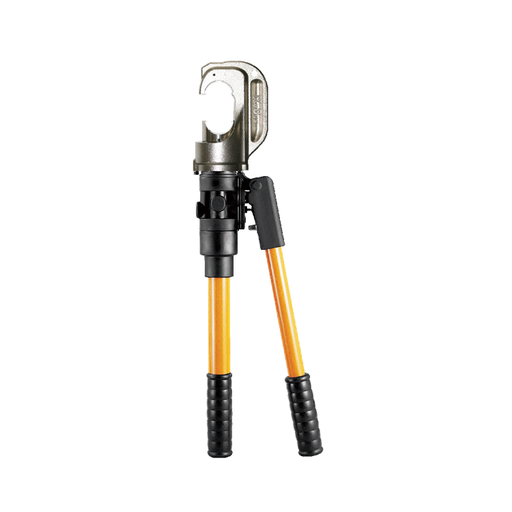

Kudos UB-412 beltless 12T compression pliers
UB-412 / Kudos (Taiwan)
- Material: Steel head, fiberglass arm and handle.
- Pressure: 700 bar, ~11.4 tons / 112kN
- Hydraulic pressure creation of pliers through lever arm.
- There is a pressure release valve when necessary to return the piston of the pliers to its original position.
- The pliers head can rotate 180°
- C-shaped pliers mouth according to international standards has a large pliers mouth width of 40mm, fits all types of clamping belts from other brands.
- Weight: 6.7kg
- Length: 635m
- Use the base to press all types of cosse heads or joints
- Stored in a plastic box, with CO, CQ, manufacturer's warranty and accompanying documents
- Standard: EN
0 ₫ 0.0 VND
Korean OKT-410 12-ton pressure pliers with belt (16~300)
Y-35 (OKT-410) / Boryung (Korea)
- Material: Steel head, fiberglass arm and handle.
- Pressure: 1000PSI, ~12 tons
- Hydraulic pressure creation of pliers through lever arm.
- There is a pressure release valve when necessary to return the piston of the pliers to its original position.
- The pliers head can rotate 180°
- C-shaped pliers mouth according to international standards has a large mouth width, fits all types of clamping belts from other brands.
- Weight: 6.2kg
- Use the base to press all kinds of connectors or joints for copper, aluminum and ACSR wires
- Set includes 11 hexagonal clamps sized: 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300mm²
- Stored in a plastic box, with CO, CQ, manufacturer's warranty and accompanying documents
- Standard: KOSHA (Korea)
Warranty 12 months
0 ₫ 0.0 VND

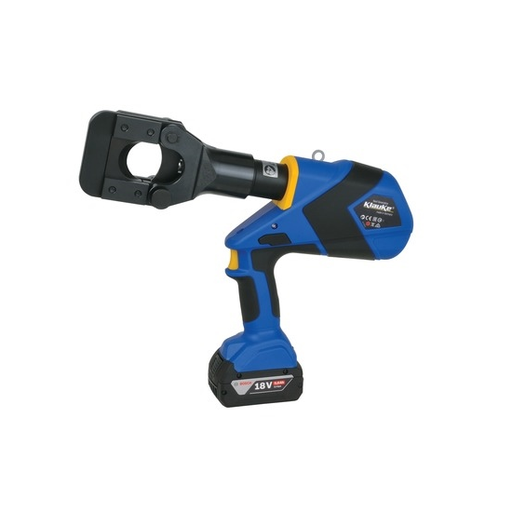

ACSR Cordless Cutting Pliers 45mm OD Klauke ESG45-CFM
ESG 45 / KLAUKE - Germany
- Cutting force: 70 kN
- Maximum cutting diameter: 45 mm
- Power source: Bosh/Makita rechargeable battery type 18V 3.0 Ah (or Bosch 5.0 Ah)
- Weight (including battery): 5.9 kg
- Operating temperature: -10°C - 40°C
- Used to cut copper cables, aluminum cables, ACSR cables. Also suitable for cutting aluminum, copper and steel in round shapes.
- All data can be read easily via Bluetooth. Save time when cutting multiple times thanks to the quick opening mechanism. There are LED lights that illuminate the work area
0 ₫ 0.0 VND

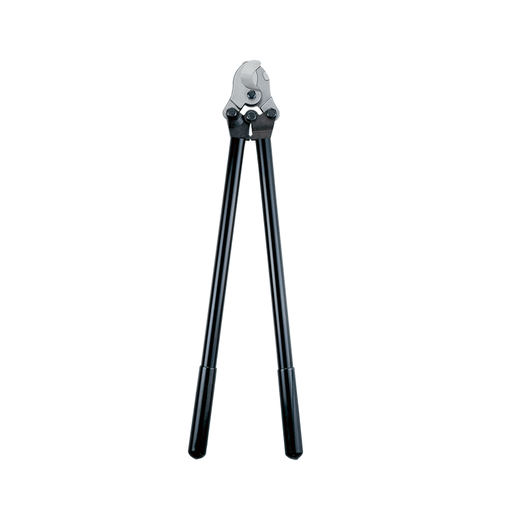

Kudos CC-185 185mm2 wire cutting pliers
CC-185 / Kudos
- Length: 600 mm
- Weight: 1.80 kg
- For copper and aluminum cables with an area of ​​up to 185 square mm
- Compound handle design, easy cutting.
0 ₫ 0.0 VND

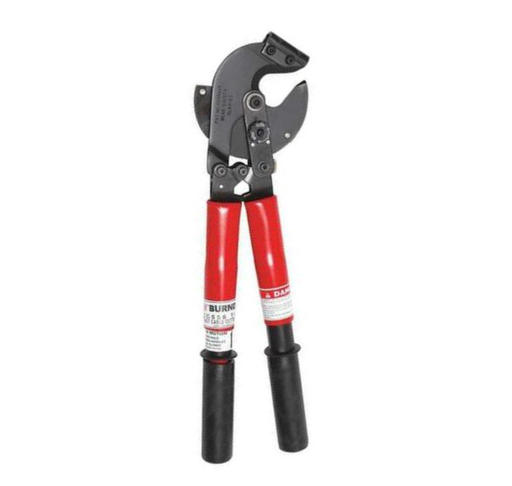

BURNDY RC556 cable cutter
RCC556 / BURNDY - USA
- Fiberglass handle
- Pliers material: Composite steel
- Maximum opening: 500mm
- Weight: 2kg
- Overall length: 20 "
- Dimensions LxWxH: 53.34 x 19.3 x 13.97 cm
0 ₫ 0.0 VND
