ELECTRICAL SAFETY TOOLS

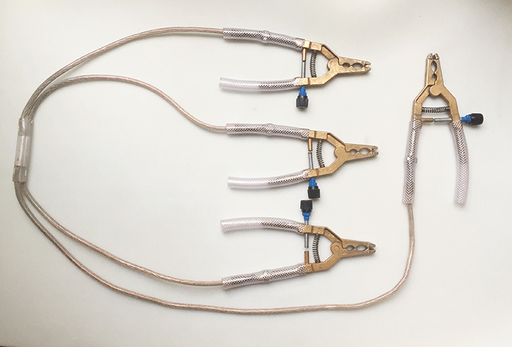

Multi-purpose low voltage grounding 448
448 / Anbaco - Vietnam
- Includes 4 alloy ground clamps
- The clamp head uses a wire clamp with a contact area of ​​50 ~ 300mm², the nose side can be made into a V shape up to 120⁰
- Ground wire made from 16mm² / 25mm² copper wire covered with 1mm PVC
- Set includes 1 piece of wire 1.5m long and 3 pieces 0.4m long connected by an insulated clamp (can be lengthened upon request)
- Used for grounding before performing work on 3-phase low voltage lines, Aptomat output at nuts and cables.
- Industrial design patent No. 21256 issued by the National Intellectual Property Office.
0 ₫ 0.0 VND
Medium voltage mobile grounding 3351
TD - 3351 / Anbaco
- Clamp head made of aluminum alloy
- The hot line clamp has a good spring and is tightened with a threaded ring. The contact surface between the clamp and the wire is large, good and even.
- The clamp head can clamp wires with a cross section of up to 240mm².
- There are 4 clamps for 01 set of ground wires.
- Grounding wire: Multi-strand soft copper wire with clear PVC coating; Uncoated wire cross section is 16mm²/25mm², PVC coating thickness is 1mm.
- There are 4 pieces of wire, each 2m long (or longer as required).
- At each end of the wire attached to the clamp head and the middle point connecting the wire segments, there must be a pressed coss. - At the pressed coss positions, there must be a flexible rubber cover on the outside to prevent the wire from fraying or breaking due to use. long time.
- Used to ground the medium voltage grid with voltage up to 35kV before performing work
0 ₫ 0.0 VND
Fameca TN17 INSULATING SHEET WITH ADHESIVE STRIPS (VELCRO) (0.66x0.36mm)
TN17 / Fameca
- Size: 0.66mm x 0.36mm
- Weight: 60g
- Designed with adhesive strips to secure the cover.
- Insulate by covering exposed wires or faulty, unstable or insufficiently insulated wires.
- Multiple panels can be joined together.
0 ₫ 0.0 VND

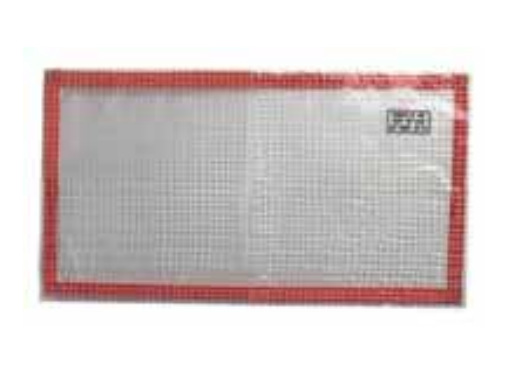

Fameca TN17 INSULATING SHEET WITH ADHESIVE STRIPS (VELCRO) (0.5x0.9m)
TN17 / Fameca
- Size: 0.9mm x 0.5mm
- Weight: 120g
- Designed with adhesive strips to secure the cover.
- Insulate by covering exposed wires or faulty, unstable or insufficiently insulated wires.
- Multiple panels can be joined together.
0 ₫ 0.0 VND

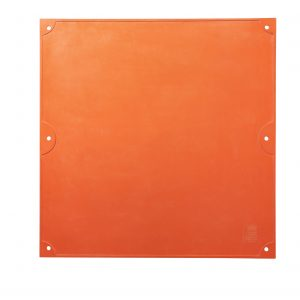

Novax Class 4 T-RIB/01 36kV Insulating Mats and Coverings
Novax - Malaysia
- Dimensions: 36"x36" 914x914mm
- 36,000V insulation
- Test insulation at 40,000V
- ASTM D1048 standard
0 ₫ 0.0 VND

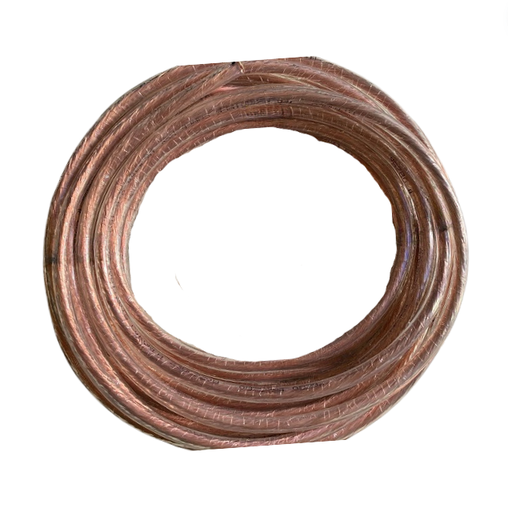

Copper cable covered in clear plastic
Dây cáp đồng được bọc nhựa trong
- Tiết diện: 16mm2, 25mm2,...
- Được dùng trong hệ thống tiếp địa an toàn điện, hệ thống chống sét...
- Lõi cáp được tạo thành từ nhiều sợi đồng nhỏ, được rút cứng lại và bện thành các vòng tròn đồng tâm với nhau.
0 ₫ 0.0 VND
