MEASUREMENT - TESTING DEVICES

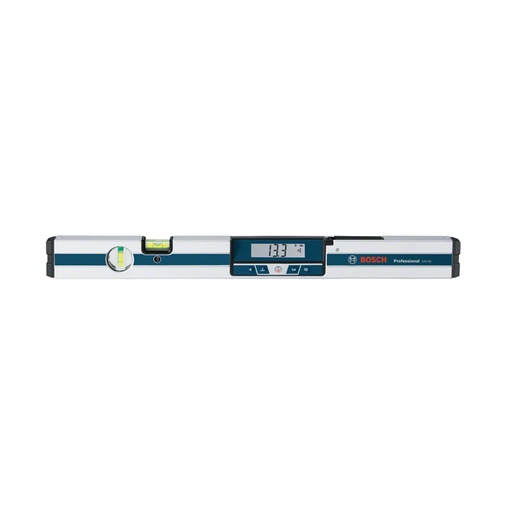

GIM 60 Digital Inclinometer - BOSCH
GIM 60 / BOSCH
- Length: 60 cm
- Measuring range: 0-360 degrees (4x90 degrees)
- Electronic measurement accuracy 0°/90°: ± 0.05°
- Accurate electronic measurement at 1 – 89°: ± 0.2°
- Measurement accuracy, glass tube foam: ± 0.057° = ± 1 mm/m
- Approximate weight: 0.77 kg
- Measurement units: °, %, mm/m
- Measure tilt accurately in degrees, percent or millimeters/meter
- Directional arrows and audio signals at 0° and 90° make adjustments easy
- The measured value can automatically rotate on the screen when operating in an area above the head
0 ₫ 0.0 VND
Automatic Level BOSCH GOL 32 D
GOL 32 D / BOSCH
- Accuracy: ± 1 mm at 30 m
- Measurement unit: 360 degrees
- Magnification: 32x
- Working range: 120 m
- Protection class: IP 54
- Tripod thread: 5/8"
- Operating temperature: -10 – 50 °C
- Weight, approx.: 1.5 kg
- Working range, value: 120 m
- Compensator lock design for safe transport
0 ₫ 0.0 VND

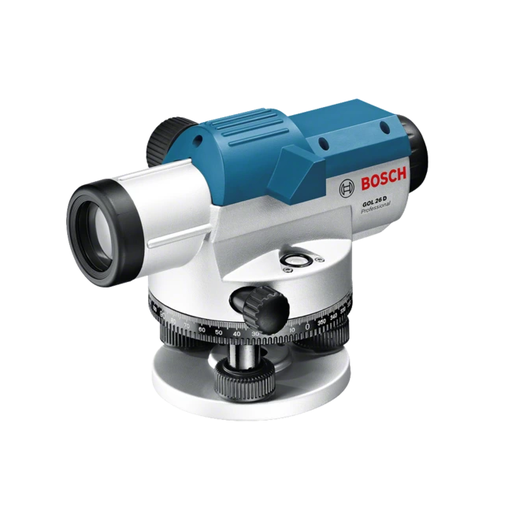

Automatic Level BOSCH GOL 26 D
GOL 26 D / BOSCH
- Accuracy: ± 1.6 mm at 30 m
- Measurement unit: 360 degrees
- Magnification: 26x
- Working range: 100 m
- Protection class: IP 54
- Tripod thread: 5/8"
- Operating temperature: -10 – 50 °C
- Weight, approx.: 1.5 kg
- Working range, value: 100 m
- Compensator lock design for safe transport
0 ₫ 0.0 VND

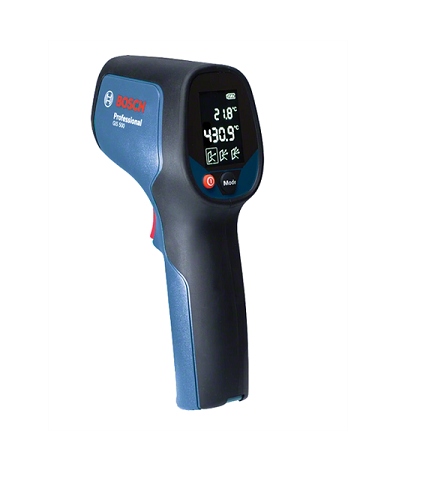

BOSCH GIS 500 Temperature Meter
GIS 500 / BOSCH
- Measurement application: Measure temperature at one point
- IR measurement accuracy: ± 1.8°C* (*additional deviation depending on use)
- Laser diode: 2, 635 nm laser glass
- Power supply and operating time: 2 x 1.5V LR6 batteries (AA) 9h
- Weight: 0.22 kg
- Operating temperature: -5 – 50 °C
- Optical: 12:1
- Measuring range: Surface temperature, -30 ⁰C to +500 ⁰C
- Measurement accuracy (typical): Surface temperature, -30℃ ≤ t ≤ -10℃: ± (1.8℃ + 0.1 x |t| ℃), -10℃ < t < 0℃: ± 2.8℃ , 0℃ ≤ t < 100℃: ±1.8℃, 100℃ ≤ t ≤ 500℃: ± 1.8%
0 ₫ 0.0 VND

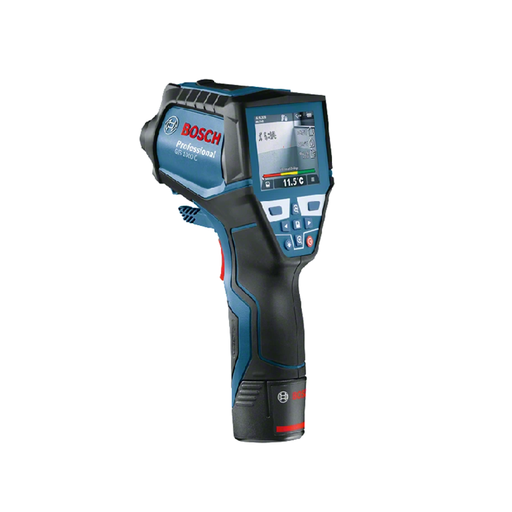

GIS 1000 C Temperature Meter
GIS 1000 C/BOSCH
- Measurement applications: Measure temperature at one point, Thermal bridge, dew point
- IR measurement accuracy: ± 1.0°C* (*additional deviation depending on use)
- Laser diode: 2, 635 nm laser glass
- Weight: 0.56 kg
- Operating temperature: -10 – 50 °C
- Storage temperature: -20 – 70 °C
- Operating range: 0.1-5 m
- Measuring range: Surface temperature, -40 ⁰C to + 1000 ⁰C
- Measuring accuracy of relative humidity: ± 2%** (**plus error depending on usage)
- Integrated camera instantly displays and records measurement values ​​with images
- Transfer and store actual data via Bosch Thermal App or USB
0 ₫ 0.0 VND

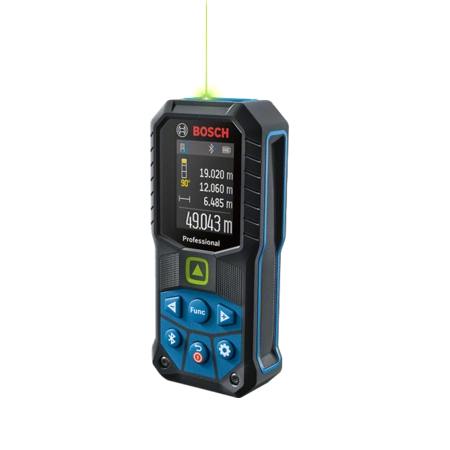

Laser Distance Meter GLM 50-27 CG (green laser)
GLM 50-27 CG / BOSCH
- Laser Diode: 515 nm < 1mW
- Measuring range: 0.05 – 50 m
- Extreme accuracy: ± 1.5 mm
- Power supply: 2 1.5V LR6 (AA) batteries
- Maximum measurement time is 4s
- Weight:  approximately 0.2 Kg
- Laser color: Green
- Data transmission: Bluetooth™ 4.2 Low Energy
0 ₫ 0.0 VND

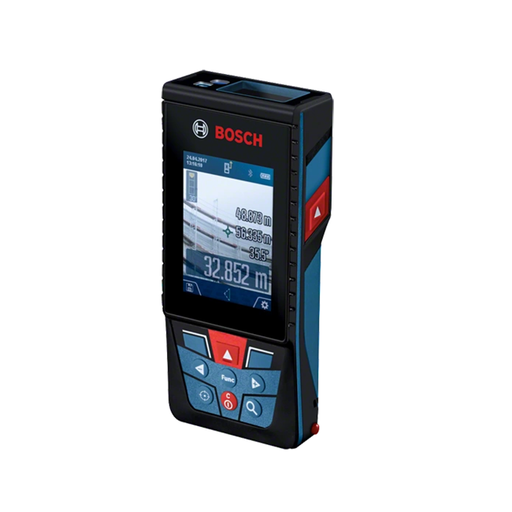

Laser Distance Measurer GLM 150 C
GLM 150 C / BOSCH
- Laser Diode: 650 nm<1mW
- Measuring range: 0.08 – 150 m
- Extreme accuracy: ± 1.5 mm
- Power supply: 3 1.5V LR6 (AA) batteries
- Weight:  approximately 0.23 Kg
- Laser color: Red
- Data transmission: Bluetooth™ Smart
0 ₫ 0.0 VND

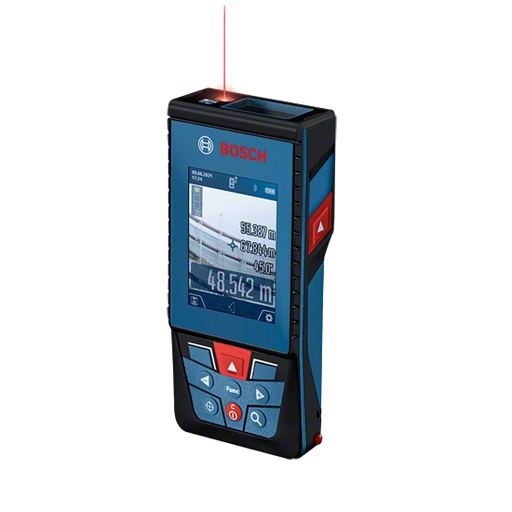

Laser Distance Measurer GLM 100-25 C
GLM 100-25 C / BOSCH
- Laser Diode: 650 nm < 1mW
- Measuring range: 0.08 – 100 m
- Extreme accuracy: ± 1.5 mm
- Power supply: 3 1.5V LR6 (AA) batteries
- Maximum measurement time is 4s
- Weight:  approximately 0.23 Kg
- Laser color: Red
- Data transmission: Bluetooth™ 4.2 Low Energy
0 ₫ 0.0 VND
BOSCH D-tect 200 C Multifunction Detector
D-Tect 200 C / BOSCH
- Maximum detection depth:
Detection depth, dry concrete, maximum: 200 mm
Detection depth, young concrete, maximum: 60 mm
Detection depth, other wall types, maximum: 80 mm
Detection depth, magnetic metals, maximum: 200 mm
Detection depth, non-magnetic metals, maximum: 80 mm
Detection depth, live cable, maximum: 80 mm
Detection depth, wooden foundation structure, maximum: 38 mm
- Accuracy: ± 5 mm
- Wall type: Concrete, Young concrete, Dry wall, Regular brick/texture, Horizontal hole brick, Vertical hole brick, Heating board
- Objects that can be detected: magnetic metals (e.g. iron), non-magnetic metals (e.g. copper), electrical cables, non-energetic cables, data transmission cables and low voltage (power cables 3-phase, cavity), water-filled plastic pipes, hollow plastic pipes, wooden base structure
- Power supply: 12V Li-ion battery, 10.8V Li-ion battery or 4 1.5V LR6 (AA) batteries
- Weight: approximately 0.64 kg
- Additional functions: Leak detection, distance measurement
0 ₫ 0.0 VND
SEW PM15 pressure and power gauge
PM-15 / SEW - Taiwan
- AC voltage: 100-240Vrms ; Accuracy ±1%
- AC current: 15Arms; Accuracy ±1%
- Power: 0-3750W; Accuracy ±1%
- Power factor: 0.001-1
- Frequency: 45-65Hz / ±1%
- Cost: 0-9999999 $
- Power consumption: 0-99999 kWh
- Price setting: 0-99,999 kWh,cents/kWh
- Time: 1,8,12,24 Hours / 2,5,7,14,28 Days
- Fuse: 15A/250V
- Dimensions: 135(L) x 80(W) x 35(D) mm
- Weight: 200g
- Standard: EN 61010-1 ; EN 61326-1
0 ₫ 0.0 VND

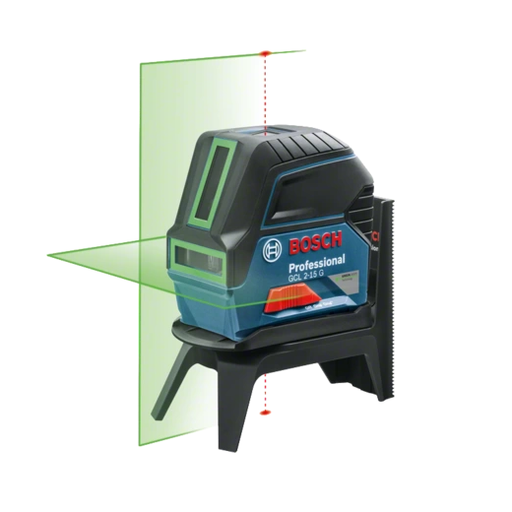

Máy Cân Mực Laser Tia Xanh GCL 2-15 G
GCL 2-15 G / BOSCH
- Laser Diode: Line: 500 – 540 nm, < 10 mW; Point: 630 – 650 nm, < 1 mW
- Operating range: 15 m
- Accuracy: ± 0.3 mm/m* (*additional error depending on usage)
- Power supply: 3 x 1.5V LR6 (AA)
- Weight: approximately 0.49 kg
- Operating temperature: -10 – 50 °C
- Storage temperature: -20 – 70 °C
- Protection rating: IP54
- Self-leveling range: ± 4°
- Laser color: Green
- Projection: 2 lines, 2 points
- Maximum operating time: 6h in point and cross line mode, 8h in cross line mode, 10h in point and line mode, 12h in line mode, 22h in point mode
0 ₫ 0.0 VND

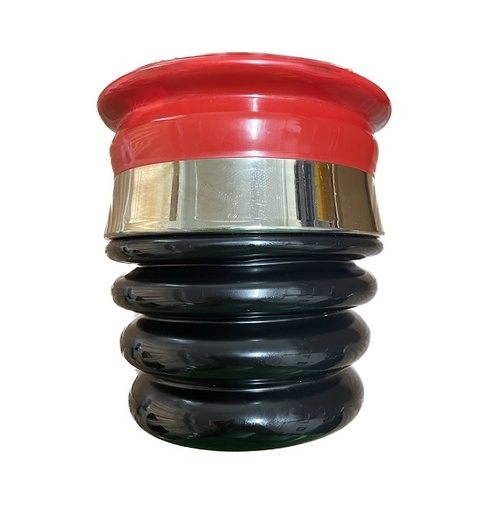

NOVAX insulating glove testing tool
T-GIK 01 / NOVAX (Malaysia)
- A handheld device that assists users in the process of visually inspecting abrasions, cuts, tears or punctures on insulating gloves
- Glove inflator set includes: Test pump, a carrying bag, and a strap to hold the gloves in place during testing
- Total weight: Approx. 0.9kg
- Recommendation: you should use a pump to check insulating rubber gloves before using them in contact with electricity, to ensure safety and avoid the gloves being exposed, punctured, eroded, etc., causing leaks. Dangerous electricity.
0 ₫ 0.0 VND

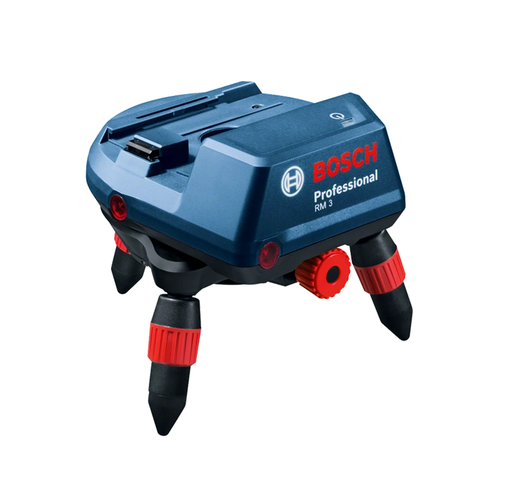

Motorized Rotating Mount RM 3 - BOSCH
RM 3 / BOSCH
- Weight: 0.5 kg
- Tool dimensions (length): 135 mm
- Tool dimensions (height): 120 mm
- Multi-functional frame with motor for adjusting laser lines and flexible tool mounting
- Operates with a smartphone via Bluetooth® or RC 2 Professional remote control
- Compatible with the new GCL 2-50 C and GCL 2-50 CG
0 ₫ 0.0 VND

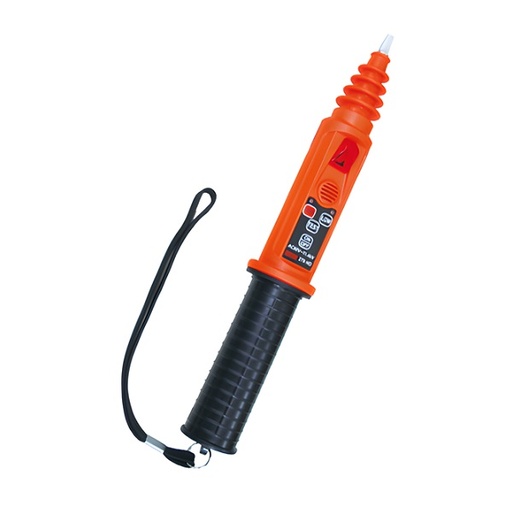

U phase test head 80V~11.4kV AC SEW 279HD
279HD / SEW - Taiwan
- Test voltage range: 80V ~ 11.4kV AC
- Frequency: 50Hz / 60Hz
- Insulation resistance: ≥100MΩ
- Dielectric strength: 20kV for 3 minutes between contact tip and clamp
- Leakage current: 0.12mA or less above dielectric strength
- Starting voltage (direct contact part): Low voltage: 65±15V ; High voltage: 1700±200V.
- Sound emission: 50dB or more (2m apart)
- Operating temperature: 0°C~40°C
- Structure: Waterproof, equivalent to IP65
- Weight (including battery): Approx. 176g
- Power: 1.5V (AAA) x 2
- Safety standard: EN 61326-1
0 ₫ 0.0 VND
U phase test head (6k~81.5kV) 2.45m SEW 290HD
290HD / SEW - Taiwan
- Test voltage range: 6kV~81.5kV
- Operating voltage: 2.7kV (Compared to ground)
- Display: Red light, Sound 50dB at 3m
- Club length: 1370±50mm (retracted) and 2450±50mm (extended)
- Frequency: 50/60Hz
- Withstand voltage: 100kV/300mm for 1 minute
- Insulation resistance: 2000MΩ min at 1kV
- Detection current: 100uA or less than 100uA
- Operating temperature: 0°C~40°C
- Battery source: 2 button-cells LR44 (1.5V)
- Weight: 590g (including battery)
- Standard: IEC / EN 61243-1
0 ₫ 0.0 VND
U phase test head (6k~36.5kV) 1.52m SEW 230HD
230HD / SEW - Taiwan
- Test voltage range: 6kV ~ 36.5kV
- Operating voltage: 2.7kV (Compared to GND)
- Display: Red light, Sound 50dB at 3m
- Club length: 893±50mm (retracted) and 1520±50mm (extended)
- Frequency: 50/60Hz
- Withstand voltage: 100kV/300mm for 1 minute
- Insulation resistance: 2000MΩ min at 1kV
- Detection current: 100uA or less than 100uA
- Operating temperature: 0°C~40°C
- Battery source: 2 button-cells LR44 (1.5V)
- Weight: 485g (including battery)
- Standard: IEC / EN 61243-1
0 ₫ 0.0 VND
SEW LVD-20 low pressure tester
LVD-20 / SEW - Taiwan
- Voltage range: AC 12V-600V; DC 12V-600V
- Frequency: 30 to 330 Hz
- Measurement type: CAT. III 600V
- Warning when voltage is detected: LED and sound
- Operating temperature: 0 to 40°C
- Operating humidity: < 80% R.H.
- Operating altitude: maximum 2000 m
- Dimensions: 148(L) x 27(W) x 25(D)mm
- Weight: 57g
- Power: 2 x 1.5V (AAA) batteries
0 ₫ 0.0 VND
Low pressure tester 50-1000VAC SEW LVD-15
LVD-15 / SEW - Taiwan
- Detection voltage: 50V~1000V AC
- Working frequency: 50~500 Hz
- Dimensions: 142(L) × 28(W) × 27(D)mm
- Weight:. 45g
- Power: 2 x 1.5V (AAA)
- There is a bright LED light and an audible alarm when there is voltage.
- ON/OFF switch for longer battery life.
0 ₫ 0.0 VND

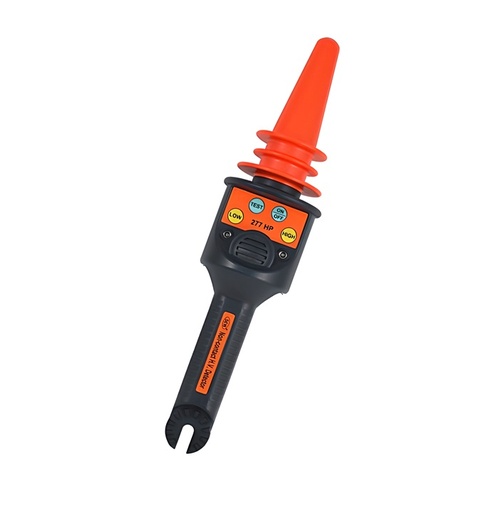

Inductive electric tester 50-132KW SEW 277HP
277HP / SEW - Taiwan
- High voltage tester with two optional measuring ranges: Low: 50V~1.5kV; High: 1.5kV~132kV
- Electric used:
+ Off state: <5uA
+ Low voltage detection mode: <40mA
+ High voltage detection mode: <40mA
- Mode switching button: HIGH/OFF/LOW
- Operating temperature: 0ºC~40ºC
- Dimensions: 318 x 75 x 71 mm
- Weight: 227g
- Self-test function: press the "Test" button to check that the device is working properly before using it to check high voltage.
- Protection standard: EN61326-1; EN61000-4-2; EN61000-4-3
0 ₫ 0.0 VND

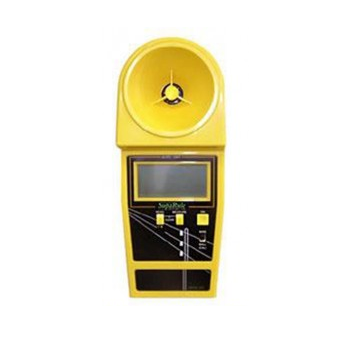

Line deflection meter 600E
CHM600E / Suparule -Ireland
- Cable range: 23m/75ft; Measure 6 wires
- Operating temperature: -10°C - 40°C
- Size: 205x100x70 mn
- Weight: 0.5 kg
- Handheld cable height measuring device. To measure cable height distance, deflection and overhead clearance.
- Simple operation with 3 buttons ensures fast and effective measurements
- Auto power off function helps save battery when inactive after three minutes
- Measurement applications: Telephone lines, Distribution lines, Transmission lines, Cable TV (installers and contractors), Street lights, Sag (lowest point above ground), Dark separation six cable multi.
0 ₫ 0.0 VND
