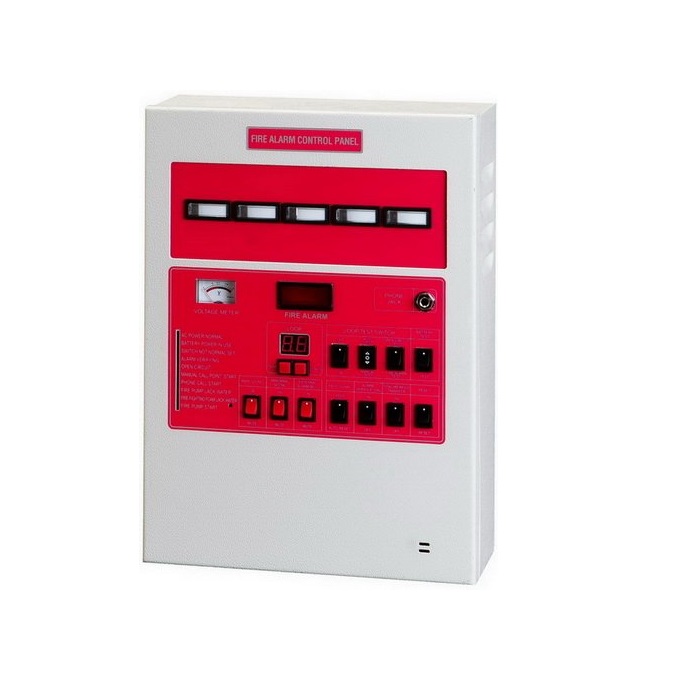

Formosa FMS-P5-15L 5-channel fire alarm control panel

FMS-P5-15L / Formosa - Taiwan
- Input voltage: 220VAC/50Hz
- Operating voltage: 24VDC
- Backup battery: 24VDC
- End-of-line resistance: 10KΩ
- Maximum number of smoke detectors: 20 heads / loop
- Alarm verification time: 7 seconds
- Safe zone: below 56Ω
- Function:
* Alarm verification: carefully check the fire alarm signal to avoid false alarms.
* Battery self-protection: When the battery is low, it will stop discharging.
* LED indicator: The light has different colors to indicate different conditions.
* Loop auto-test and manual test: Test the loop form from 1 to the end automatically or set a certain loop manually to test.
* The control panel is always visible.
* With Verification
